UI Components

Create custom application GUIs using any of these components: button, label, layout, text field, dropdown, listbox, image, checkbox, message box, progress bar, scrollbar, tabs, table, and a global color palette. Each component has a customizable border, background and padding.

Linear Graphing

Plot linear data in static and real-time graphs. Multiline / multiplot graphing is also supported and optimized for big data operations.

GUI Event Handling

Manage keyboard and mouse events with ease using GItem (GUI items) and GuiCommanders (actions). Polymorphic mini components allow for fast tracking and responding to any event.

3D (Experimental)

Render colored 3D objects (untextured). Right click to rotate camera and scroll to zoom.

Code Sample

                    // Linear Layout
                    GLinearLayout* netNameLayout = new GLinearLayout("netNameLayout");
                    netNameLayout->setOrientation(GLinearLayout::HORIZONTAL);
                    leftSideLayout->addSubItem(netNameLayout);

                    // Load button
                    RUButton* btnLoad = new RUButton();
                    btnLoad->setWidth(200);
                    btnLoad->setHeight(30);
                    btnLoad->setText("Reload List");
                    btnLoad->setMouseDownListener(&NNCreatorPanel::GuiCommander10);
                    btnLoad->setName("btnLoad");
                    loadNetLayout->addSubItem(btnLoad);

                    ...

                    void NNCreatorPanel::GuiCommander10(const std::string& cmpName, int x, int y)
                    {
	                    loadDDNN();
                    }

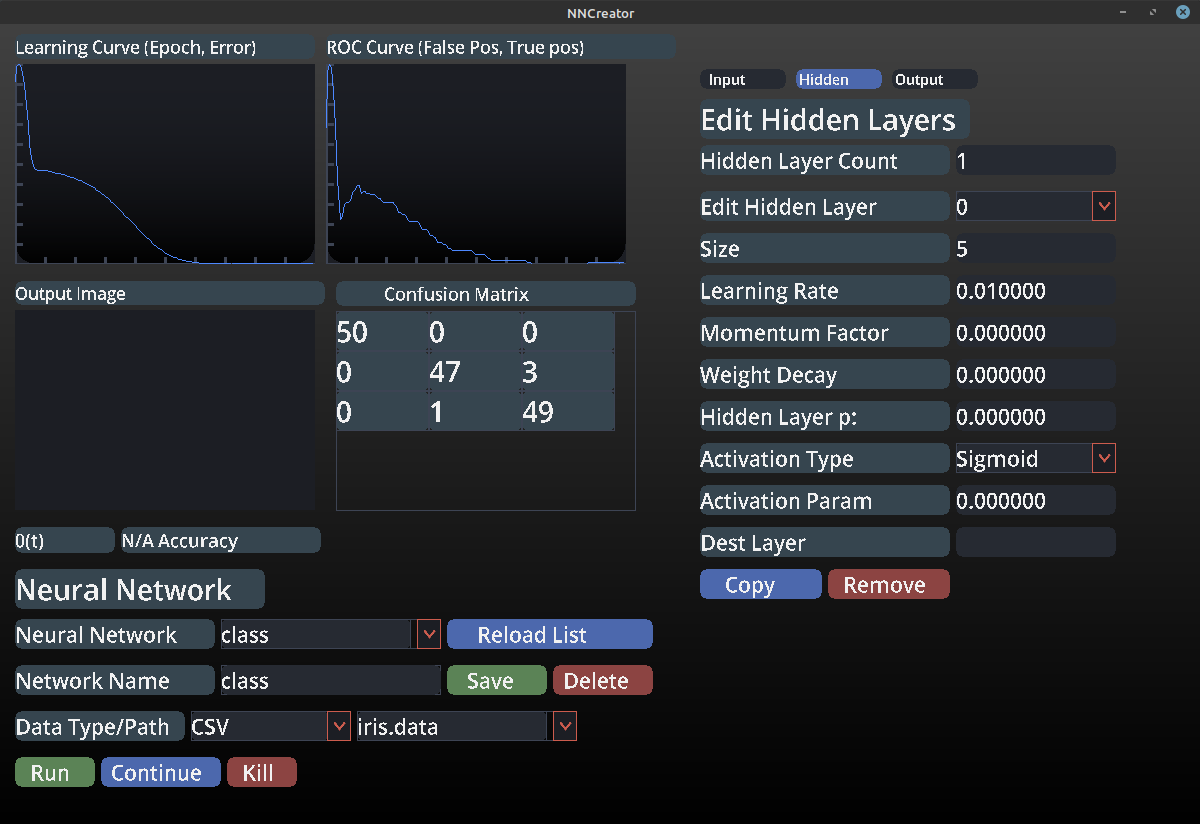

Build Example
